In this guide, you will gain a comprehensive understanding of elevator shafts. We will delve into their design and construction, explore their components, discuss security measures, maintenance practices, and highlight the latest technological advancements incorporated into modern shafts. Whether you’re a builder, a prospective elevator purchaser, or simply curious about the inner workings of high-rise buildings, this information will prove invaluable.
Elevators are integral components of any building, facilitating movement between floors and typically being among the first installations in multi-story structures. To house these elevators, elevator shafts are constructed. These structures envelop the elevators, ensuring their security and providing a comfortable ride for users.
What is an elevator shaft? An elevator shaft is a tall, enclosed space within a building designed to facilitate the movement of elevators or lifts. Think of it as the elevator’s dedicated pathway or thoroughfare within the building. Constructed from fireproof materials, the shaft provides a secure enclosure for the elevator’s moving parts, safeguarding users in case of emergencies.
The shaft accommodates essential components such as the elevator car, counterweight for balance, and guide rails for stability. Similar to a race track guiding fast cars, the elevator shaft serves as a conduit for the elevator cabin, ensuring stable and safe vertical movement within the building.
How Much Space Does the Elevator Shaft Require?
With years of experience in elevator construction, Professional Elevators recommends a minimum space of 4 ft x 5 ft for a reasonably small yet fully functional elevator. If you communicate, the team of elevator experts, will assess your specific needs and requirements to determine the appropriate dimensions and configuration for your elevator.
Essential Components for The Elevator Shaft An elevator shaft is composed of several components, beginning with:
- Hoistway: The elevator shaft’s primary component is the hoistway. It contains the path that users and the elevator car travel on. It facilitates users’ movement within the building.
- Elevator Car: The section that transports people and their belongings across the building is known as an elevator car or cabin. It has doors that provide access points for you to get in and out of the vehicle or cabin.
- Guide Rails: The walls of the elevator shaft have special tracks called guide rails. They aid in keeping the elevator cabin steady while the car is moving.
Counterweight: The elevator’s counterweight helps maintain equilibrium so that it is stable and facilitates movement. The other end of the rope is used to link it to the vehicle. - Machine Room: The machine room, located at the summit of the elevator shaft, houses the device that turns the elevator cabin. This device has a special motor, gears, and other elements that facilitate floor-to-floor elevator movement.
- Shaft Ventilation: Having a high-quality ventilation system is essential since it’s critical that the cabin’s air is both clean and temperate. Ensuring smooth elevator operation and putting users at rest is made possible by a clean ventilation system. Also preventing overheating is an effective ventilation system.
- Pit: The area beneath the ground floor is known as the pit. On the lowest floor, it aids in providing clearance for the elevator.
- Overhead Clearance: On the building’s top floor, this feature is an unoccupied area above the elevator shaft. The elevator is located on the highest floor.
- Shaft Lighting: To provide light for both the elevator’s maintenance team and its occupants. Importantly, the shaft lighting system is installed inside the hoistway. We would then examine the various kinds of elevator shafts.
- Guide shoes: These are typically made from materials like metal or composite materials, and they may include liners or inserts made from low-friction materials like Teflon or nylon to minimize wear and noise. There are two main types of guide shoes: fixed guide shoes and roller guide shoes. Fixed guide shoes slide along the rails, while roller guide shoes use rollers to reduce friction and allow for smoother, quieter movement.
Different Types of Elevator Shafts:
Elevator shafts can be constructed using various materials and designs. Three common types include:
- Concrete Elevator Shaft: Constructed from reinforced concrete for durability and noise absorption.
- Steel Structure Elevator Shaft: Utilizes robust steel components for strength and reliability.

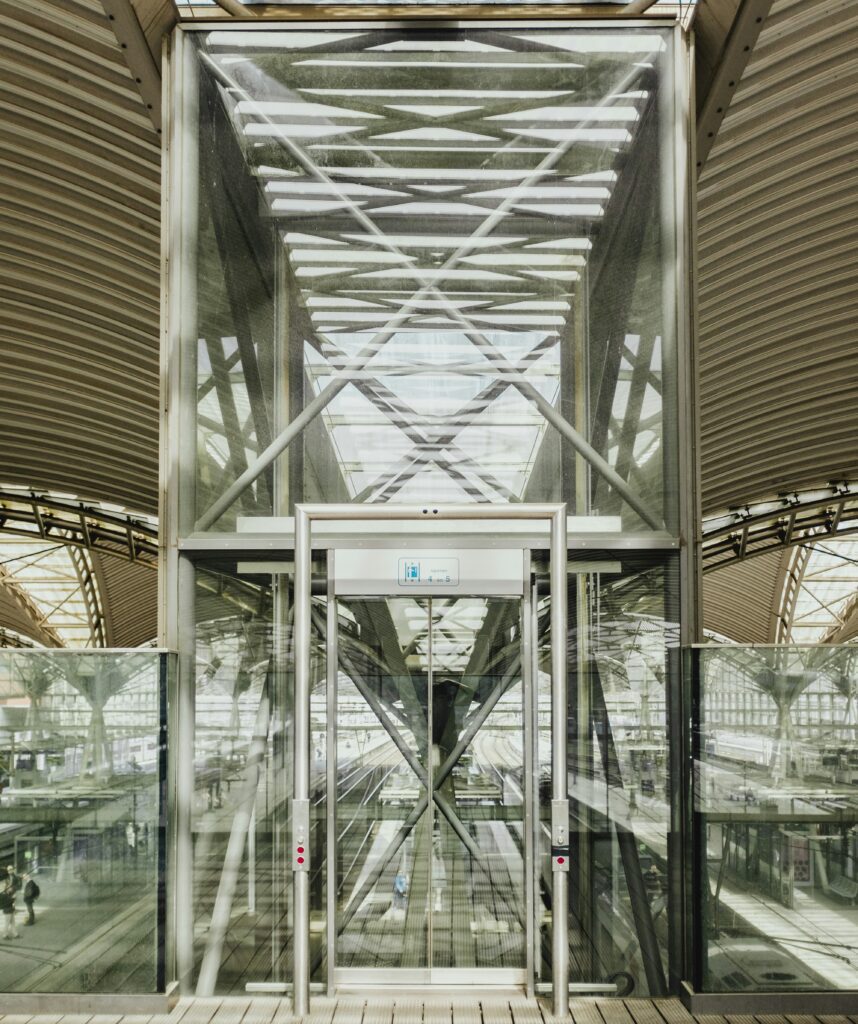

- Elevator Shaft with Glass: You can use the temperred glass in order to cover the shaft over a structered frame, which could give it an appealing look.
Elevator Shaft Dimensions Elevator shaft dimensions vary depending on factors such as elevator type and building codes. Typical sizes range from around 1500mm x 1500mm for smaller applications to 1700mm by 2100mm for standard 8-passenger elevators. It’s advisable to consult a professional elevator service provider to ensure compliance with safety standards and design requirements.
Construction of Elevator Shafts The construction process involves:
- Design and Planning: Collaborative effort between architects, engineers, and elevator manufacturers to determine shaft dimensions and specifications.
- Foundation and Pit Construction: Establishes the base support and excavates the pit beneath the shaft.
- Shaft Structural Framework: Constructs the vertical shaft structure using concrete, steel, or a combination of both.
- Elevator Installation: Installs the elevator car and components within the shaft, ensuring smooth operation and safety.
- Safety Features and Testing: Installs and tests safety mechanisms such as door sensors and brakes to ensure proper functionality.
- Finishing Touches: Incorporates fireproofing, lighting, and other safety features to complete the shaft construction.
Conclusion Elevator shaft construction is a critical aspect of building design, requiring meticulous planning and adherence to safety standards. These shafts provide the essential framework for safe and efficient vertical transportation within buildings, requiring collaboration among architects, engineers, and manufacturers to meet the diverse needs of different elevator systems.
