Elevator Access Control: Tech Behind Card Swipe Elevators

Elevator Access Control Systems

Elevators have been in use for a long time, but new technologies have been added over time. As our needs have grown, so has the demand for privacy. Just as we appreciate the finer things in life, like wine, we value the security of our spaces. Many of us have experienced how, in 5-star hotels, access to specific floors is granted only by using a key card. In many commercial buildings, some floors don’t have access buttons; only certain individuals can reach those floors via card access. It’s also common in residential buildings where the landlord resides for them to restrict elevator access to their floor. From these needs, card swipe elevator access control systems have emerged.. In this comprehensive article, we explore the intricacies of card swipe elevator technology, delving into its components, functions, and the benefits it offers to building security and user experience.

Card Swipe Elevators

Card swipe elevator systems are an advanced form of access control that integrates a card reader within the elevator car and outside the elevator hall. Elevator access control systems are specifically designed to enhance security by preventing unauthorized access to elevators. These automated systems require users to verify their identity before they can use the elevator. The verification process may involve using a key card or entering a PIN code. This not only prevents unauthorized access but also adds a layer of control over building traffic.

How It Works: A Closer Look at the Components

At the heart of a card swipe elevator system is the IC card, which stores unique user information and floor permissions. This card interacts with several components of the system:

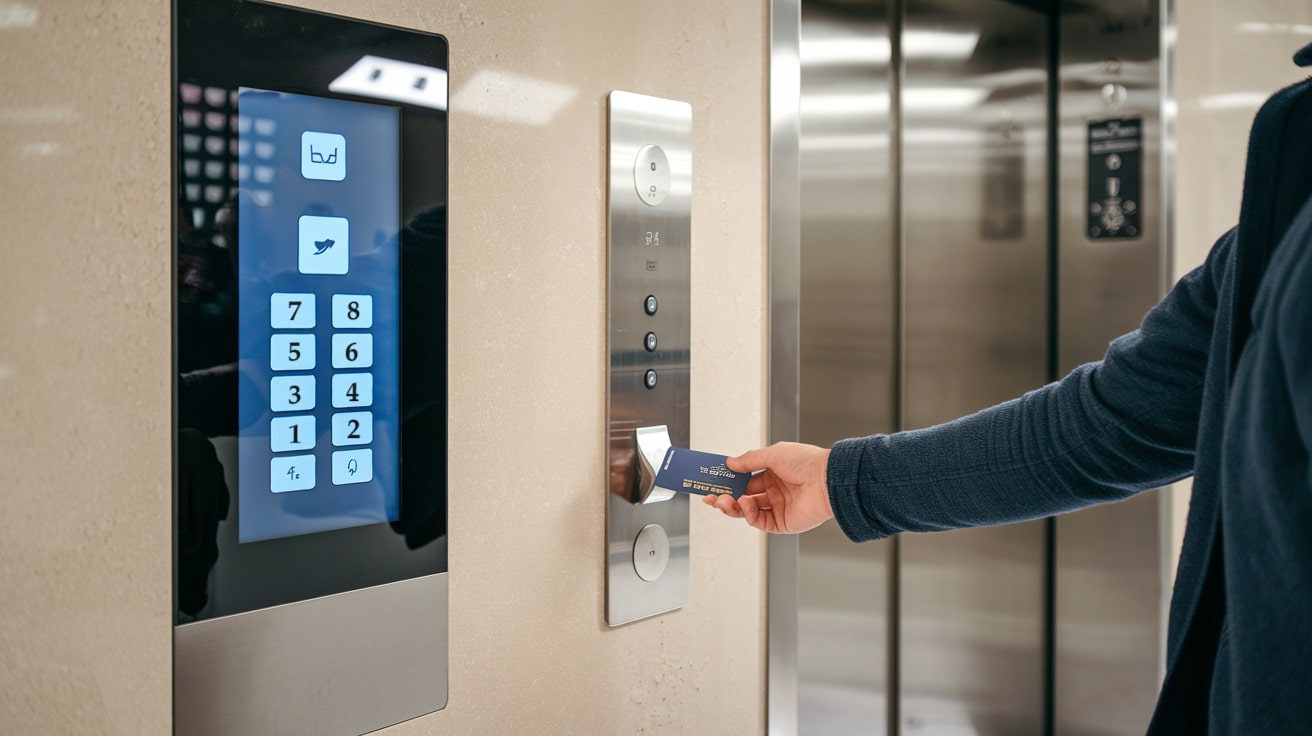

1. Card Reader Inside the Elevator Car: When a user enters the elevator, they swipe their IC card at the reader installed within the car. If the card is authorized, the user can select the pre-set floors associated with their card.
2. Card Reader Outside the Elevator Hall: This reader is positioned outside the elevator, allowing users to call the elevator by swiping their card. It ensures that only authorized users can summon the elevator, further securing access to the building.
3. Management IC Card: Building administrators own the fully authorized Management IC Card, which has the ability to override system limitations as needed. This is particularly useful for emergency situations or for maintenance purposes.

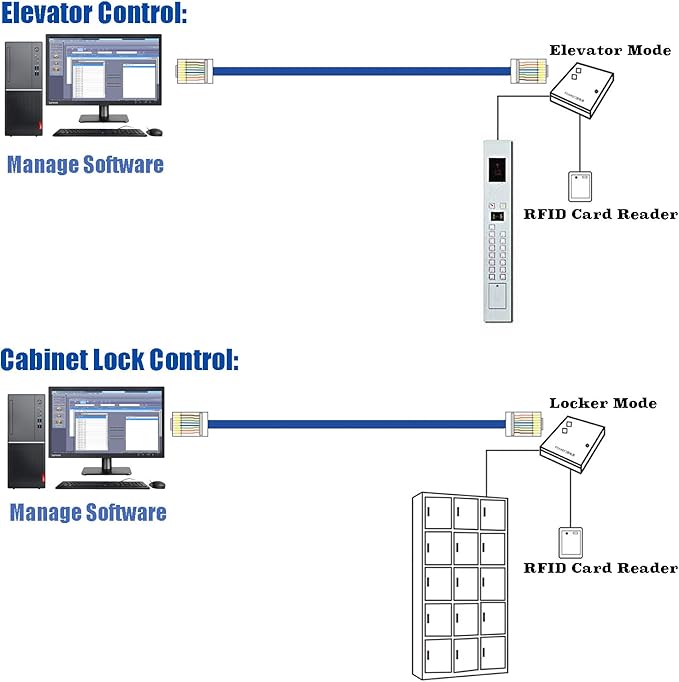

4. Control Panel and Central Management System: The elevator’s control panel communicates with a central management system, which processes the card’s information, logs user activity, and updates permissions as needed. This centralized system is crucial for maintaining security and operational efficiency.

Enhanced Security and Management Capabilities

The card swipe elevator system is more than just a security feature; it’s a sophisticated management tool. By configuring each IC card with specific permissions, building administrators can control which floors users can access, thus ensuring that only authorized individuals reach sensitive or private areas.

1. Lost Card Management

In the event of a lost card, the IC card issuance center can quickly deactivate the card, preventing any unauthorized usage. This swift response capability minimizes security risks and ensures that building access remains tightly controlled.

2. Time Zone Control

This feature allows administrators to set time-based restrictions on elevator usage. For instance, access to certain floors can be limited to specific hours of the day, enhancing security during off-peak hours or when the building is closed to the public.

3. Integration with Building Intercom Systems

In some configurations, the card swipe system integrates with the building’s intercom system. This allows visitors to communicate with residents or security personnel before being granted access to the elevator. Once identity is confirmed, the visitor can board the elevator without needing an IC card, offering both convenience and security.

Function Categories of Card Swipe Elevators

Card swipe elevator systems can be categorized into several function types, each tailored to specific building needs and security levels.

a. Building Intercom Linked Elevator

This system integrates with smart reception systems to facilitate visitor access:

• Smart Reception: Visitors can board the elevator without an IC card or password after their identity is confirmed via the intercom system.
• Time Zone Control: As mentioned earlier, this feature limits elevator operation to specific time frames, providing an additional layer of security.
• Visitor Management: The intercom system contacts residents or security to confirm the visitor’s identity, enhancing overall building security.

b. Swipe Card Direct Password Ride

This function allows for detailed control over user access:

• Single-Layer Cardholders: Users authorized for a single floor can swipe their card and directly access their designated floor without pressing any additional buttons.
• Multi-Layer Cardholders: Users with access to multiple floors can swipe their card and select from the floors they are permitted to access.
• Password Entry: For users without an IC card, an optional password entry system can be implemented to allow access, providing flexibility while maintaining security.

c. Internal Selection Elevator Intelligent Control System

This system offers advanced internal control features, including:

• Button Control Mode: Users can swipe to open all floor buttons, allowing them to select their destination within a predetermined time frame.
• Self-Test Device: The elevator can perform self-tests and revert to its original state if any system faults or damage are detected.
• Fire Safety Integration: The system includes a fire signal input interface, which ensures that the elevator operates safely during a fire emergency, automatically reverting to a secure mode.

d. Access Outside from Cabin (IC Card Call)

This function controls access to specific floors from outside the elevator:

• Biometric Integration: For enhanced security, biometric readers can be added to the system, requiring both a card swipe and biometric verification for access.
• Passive Contact System: This system connects to the elevator without impacting its performance, ensuring smooth operation even with the additional security layer.
• Data Management: The system automatically records user data, which can be used for statistical analysis, archiving, and querying purposes.

The Future of Elevator Access Control

As buildings become smarter and more secure, card swipe elevator systems will continue to evolve. Future advancements may include the integration of AI for predictive maintenance, further improvements in biometric security, and more sophisticated user management systems that can adapt to the dynamic needs of modern buildings.

Selecting the Ideal Elevator Access Control System

With a wide variety of elevator access control systems on the market, it’s essential to select one that meets your specific requirements. Here are some guidelines for which you need to keep in consideration:

1. Security Requirements: When selecting an elevator access control system, the level of security your building requires is a primary concern. It’s vital to choose a system that aligns with your security needs and complies with industry standards. For buildings with high security demands, a more advanced system featuring multi-factor authentication, such as biometrics or card readers, may be necessary. In contrast, a residential building might only require a straightforward key card system.
2. Number of Elevators: The number of elevators in your building will influence the type of system you need. A single elevator may only require a basic access control setup. However, for buildings with several elevators, especially more than five, a more sophisticated system capable of managing multiple security levels is advisable.
3. Complexity of Access: In buildings with multiple floors and varying access levels based on roles or permissions, a more intricate access control system is required. Ensure that the system you select can manage the complexity of access levels needed for your building.
4. Traffic Flow: The flow of traffic within your building will also determine the appropriate system. For buildings with a high volume of visitors or frequent elevator use, a robust access control system that can handle heavy traffic is essential. Conversely, for buildings primarily used by employees, a simpler and more cost-effective system might suffice.
5. Integration with Existing Security Systems: If you already have security systems in place, ensure that your new elevator access control system can seamlessly integrate with them. Opt for a system with open architecture that can easily connect with existing components like card readers, biometric scanners, or security cameras.
6. Cost and Installation: Elevator access control systems can vary significantly in cost and installation complexity. Some systems may necessitate professional installation, while others are more straightforward to set up. It’s important to find a system that fits your budget while still providing the necessary security features.

In conclusion, the intelligent IC card control elevator management system is a critical component in the modern security landscape, offering unparalleled control over building access. Its ability to restrict access, manage permissions, and integrate with other building systems makes it an essential tool for maintaining safety and security in any large facility.
